Carbon Steel Copper Coated Bundy Tube Double Walled Steel Bundyweld Tube

جزئیات محصول:

محل منبع:	چین
نام تجاری:	YUHONG
گواهی:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
شماره مدل:	EN10305 ، ASTM A254 ، DIN 74234

پرداخت:

مقدار حداقل تعداد سفارش:	100 کیلوگرم
جزئیات بسته بندی:	تخته سه لا ، بسته نرم افزاری ، پالت
زمان تحویل:	7 روز
شرایط پرداخت:	L/C ، T/T

مخاطب

همه محصولات

لوله بدون درز از جنس استنلس استیل (290)

لوله بدون درز از جنس استنلس استیل (277)

لوله فولادی ضد زنگ دوبلکس (127)

لوله فولادی ضد زنگ دوبلکس (29)

لوله سوزن (107)

لوله باله (631)

مبدل حرارتی (17)

لوله مبدل حرارتی (424)

بسته لوله مبادله گرما (37)

صفحه لوله مبدل حرارتی (116)

بافل مبادله گرما (36)

کولر (8)

مخازن تحت فشار (4)

لوله جوش داده شده از جنس استنلس استیل (57)

لوله جوش داده شده از جنس استنلس استیل (114)

آلیاژ نیکل لوله (261)

لوله آلیاژ نیکل (79)

لوله آلیاژ مس (227)

لوله فولادی آلیاژی (184)

لوله تیتانیومی (10)

لوله آنیل روشن (153)

لوله دیگ بخار (145)

اتصالات فولادی (804)

فلنج فولادی (590)

دیگران (391)

قطعات پوشش (7)

توضیحات محصول جزئیات

استاندارد:	EN10305 ، ASTM A254 ، DIN 74234 ، SAE J527	مادی:	10#، Q215، ST35، 10#-45#، Q195-Q345، ST35-ST52
اود:	4.76 - 16 میلی متر	دنباله:	0.71 - 1.22 میلی متر
نوع:	لوله جوش داده شده دو و یک دیوار	آزمایش:	ET، HT، تست صاف کردن، آزمایش انبساط، تست نیترات جیوه؛ تست بخار آمونیاک؛ تجزیه و تحلیل شیمیایی; معاین
برجسته کردن:	carbon steel bundy tube,copper coated bundyweld tube,double walled steel tube , copper coated bundyweld tube , double walled steel tube

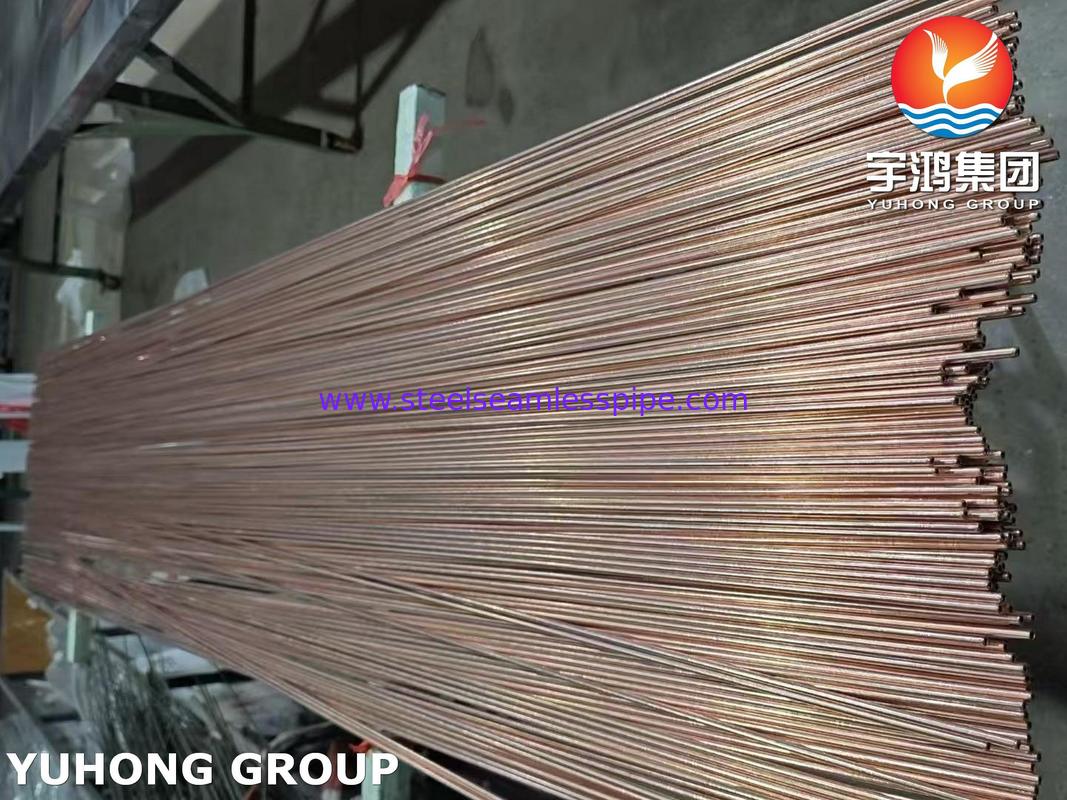

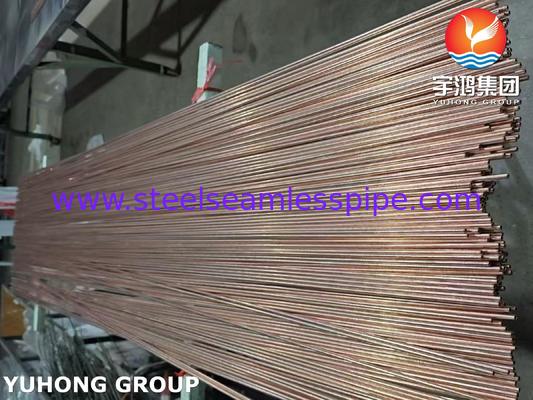

Carbon Steel Copper Coated Bundy Tube Double Walled Steel Bundyweld Tube

Bundy tube is type of double-walled low-carbon steel tube manufactured by rolling a copper-coated steel strip through 720°F and resistance brazing the overlapped seam in a process called Bundywelding. It may be zinc coated for corrosion protection. It is primarily used in automotive hydraulic brake lines in cars. We can supply any type and diameter of Bundy Tube your requirement calls for.

Bundy Tube

Double-Walled Construction: It is made from two layers of low-carbon steel strip.
Copper Brazing: The unique process involves coating one strip of steel with a layer of copper. The two strips are then rolled into a tube and passed through a furnace. The heat melts the copper, which bonds the two layers together seamlessly along the entire length of the tube. This creates an extremely strong, leak-proof, and consistent tube.
Strength and Durability: The double-wall design makes it much stronger than a single-wall tube of the same thickness, allowing it to withstand high pressures and resist vibration and fatigue.
Smooth Interior: The manufacturing process results in a very smooth inner surface, which is ideal for fluid flow.

Standard	Region / Organization	Description
SAE J527	SAE (Society of Automotive Engineers, USA)	Covers double-walled, copper-coated, steel, resistance-brazed tubing for automotive and hydraulic use.
SAE J356	SAE	Covers single-wall welded low-carbon steel tubing, sometimes used as alternative to Bundy.
ASTM A254	ASTM (USA)	Covers copper-brazed steel tubing (also known as Bundy tubing).
DIN 74234	DIN (Germany)	Specification for double-walled brazed steel tubing (Bundy tube) for brake lines.
EN 10305-2	European Norm	Welded cold-drawn steel tubes for precision applications (sometimes used for Bundy-type tubes).

Size and Tolerance

Outer diameter (mm)	Diameter tolerance (mm)	Wall thickness(mm)	Wall thickness tolerance(mm)	Pressure resistance(MPa)	Burst pressure (MPa)
4.76	±0.05	0.7	+0.05/-0.08	41.2	110
6	±0.08		±0.08	32.7	85
6.35	±0.08		±0.08	30.9	78
8	±0.1		±0.08	24.5	67.5
9.52	±0.1		±0.08	20.6	57
10	±0.1		±0.08	19.6	55
12	±0.1		±0.08	16.3	32
10	±0.1	1	±0.08	28	65
12	±0.1	1	±0.08	23.3	56

Common Applications

Bundy tube is famous for its use in automotive and refrigeration systems where reliability is critical:

Automotive: Brake lines and fuel lines are the most common applications. Its strength and resistance to corrosion (especially when coated or plated) make it ideal for these safety-critical systems.

Refrigeration & AC: Used for refrigerant lines in domestic refrigerators, air conditioners, and heat pumps because it is strong and can be easily bent to fit tight spaces.

Hydraulic Lines: Used in various hydraulic systems for machinery.

General Industrial Applications: Anywhere a durable, small-diameter, pressure-resistant tube is needed.
