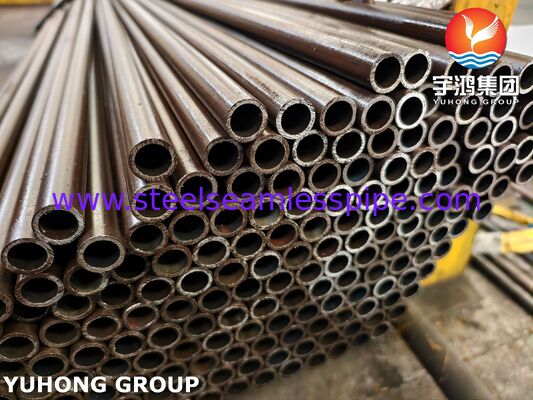

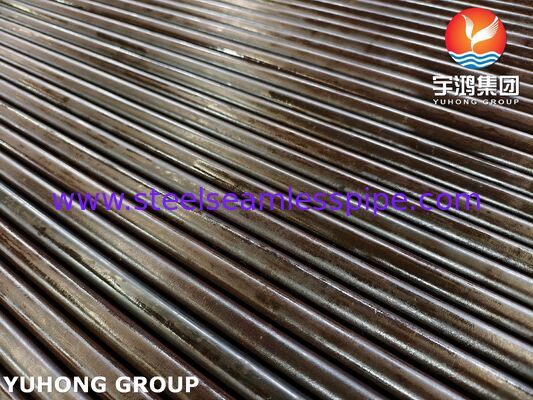

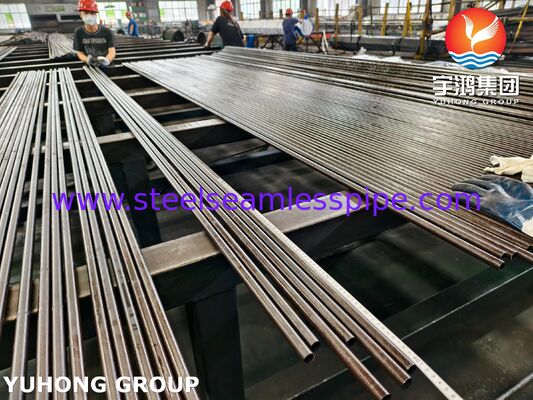

ASTM A213 T11 Seamless Alloy Steel Tube for Boiler and Heat Exchanger
ASTM A213 T11 seamless tube is a chromium-molybdenum alloy steel tube designed for high-temperature service applications, including boilers, superheaters, heat exchangers, and industrial thermal equipment.
Manufactured according to ASTM A213 specifications, T11 alloy steel seamless tubes are produced using controlled manufacturing processes to achieve required chemical composition, mechanical properties, and dimensional requirements.
The material grade T11 (commonly classified as a Cr-Mo alloy steel) is selected for applications requiring resistance to elevated temperature conditions and suitable mechanical strength under thermal service environments.
Material and Standard
ASTM A213 T11 Alloy Steel
Material Grade: T11
Standard: ASTM A213 / ASME SA213
Material Type: Chromium-Molybdenum Alloy Steel
Product Type: Seamless Tube
ASTM A213 specifies seamless ferritic and austenitic alloy steel tubes used for boilers, superheaters, and heat exchangers.
T11 alloy steel contains chromium and molybdenum alloying elements, which contribute to its suitability for high-temperature pressure equipment applications.
Chemical Composition
Typical chemical elements of ASTM A213 T11 include:
| Element |
Composition Requirement |
| Carbon (C) |
Controlled according to ASTM A213 requirements |
| Chromium (Cr) |
Alloying element for high-temperature applications |
| Molybdenum (Mo) |
Alloying element for elevated temperature strength |
| Manganese (Mn) |
Controlled alloy component |
| Silicon (Si) |
Controlled alloy component |
Manufacturing Process
ASTM A213 T11 seamless tubes are manufactured through controlled production processes, including:
Hot Extrusion
Steel billets are heated and formed through extrusion to create the initial tube shape.
Cold Drawing
Cold drawing is applied when required to achieve controlled outer diameter, wall thickness, and surface requirements.
Heat Treatment
Heat treatment is performed according to ASTM A213 requirements to obtain specified mechanical properties and metallurgical structure.
Inspection
Finished tubes are inspected according to customer requirements and applicable standards, including:
- Dimensional inspection
- Surface inspection
- Chemical composition analysis
- Mechanical testing
- Non-destructive testing
Technical Features
Chromium-Molybdenum Alloy Structure
The Cr-Mo alloy composition of T11 tube makes it suitable for thermal equipment operating under elevated temperature conditions.
Seamless Tube Manufacturing
The seamless structure provides uniform tube geometry without longitudinal weld seams, making it commonly applied in pressure-containing heat exchanger and boiler systems.
High Temperature Service Application
ASTM A213 T11 tubes are commonly selected for equipment exposed to high-temperature steam, heat transfer, and pressure service conditions.
Product Specifications
| Item |
Specification |
| Product Name |
ASTM A213 T11 Seamless Tube |
| Material Grade |
T11 |
| Standard |
ASTM A213 / ASME SA213 |
| Material Type |
Chromium Molybdenum Alloy Steel |
| Tube Type |
Seamless |
| Shape |
Round Tube |
| Manufacturing Process |
Hot Rolled / Cold Drawn |
| Heat Treatment |
According to ASTM A213 Requirements |
| Application |
Boiler, Superheater, Heat Exchanger |
Customized tube dimensions are available according to project requirements.
Common specification parameters include:
- Outside Diameter (OD)
- Wall Thickness
- Tube Length
- Heat Treatment Condition
- Surface Finish
- Testing Requirements
Applications
ASTM A213 T11 seamless tubes are widely used in:
Boiler Systems
- Power generation boilers
- Industrial boilers
- Steam equipment
Heat Exchanger Equipment
- Shell and tube heat exchangers
- Thermal processing equipment
- Industrial heat transfer systems
High Temperature Equipment
- Superheaters
- Reheaters
- Pressure equipment components
Quality Control
Quality inspection for ASTM A213 T11 seamless tubes may include:
Material Testing
- Chemical composition testing
- Mechanical property testing
Dimensional Control
- Outer diameter measurement
- Wall thickness inspection
- Length verification
Non-Destructive Testing
- Eddy current testing
- Ultrasonic testing
- Hydrostatic testing (when required)
Inspection requirements can be customized according to customer specifications and application standards.
Packaging and Delivery
ASTM A213 T11 seamless tubes are prepared according to transportation and storage requirements.
Typical packaging methods include:
- Bundled tubes
- Protective wrapping
- Steel frame packaging
- Marking according to customer requirements

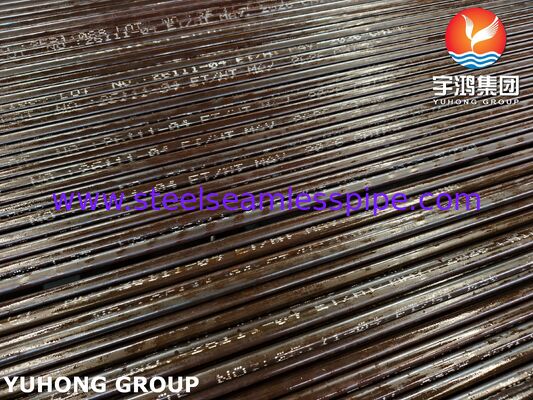

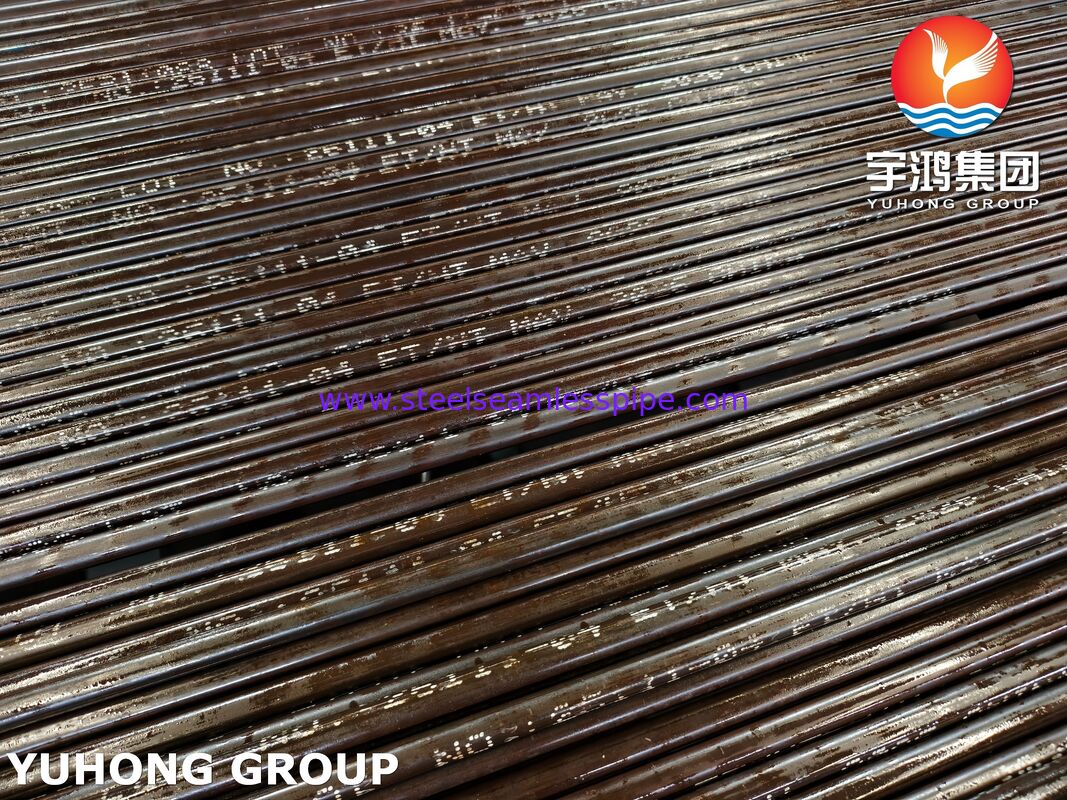

Tube identification markings can include:
- Material grade
- Standard specification
- Size information
- Heat number
Why Choose ASTM A213 T11 Seamless Tube?
ASTM A213 T11 seamless tubes are selected for industrial thermal applications due to:
- Compliance with ASTM A213 material requirements
- Chromium-molybdenum alloy composition
- Seamless tube construction
- Suitability for boiler and heat exchanger systems
- Availability of customized dimensions and inspection requirements
