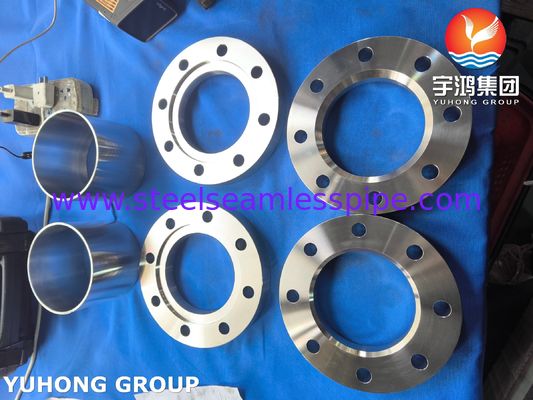

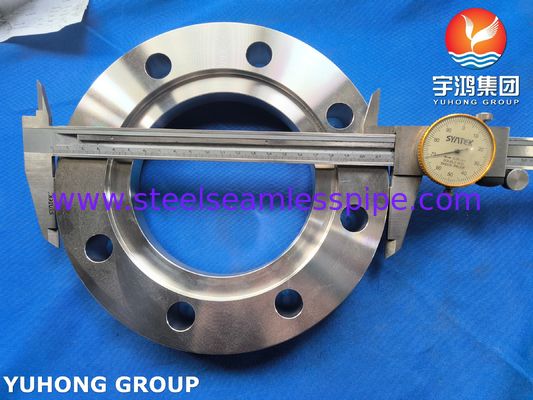

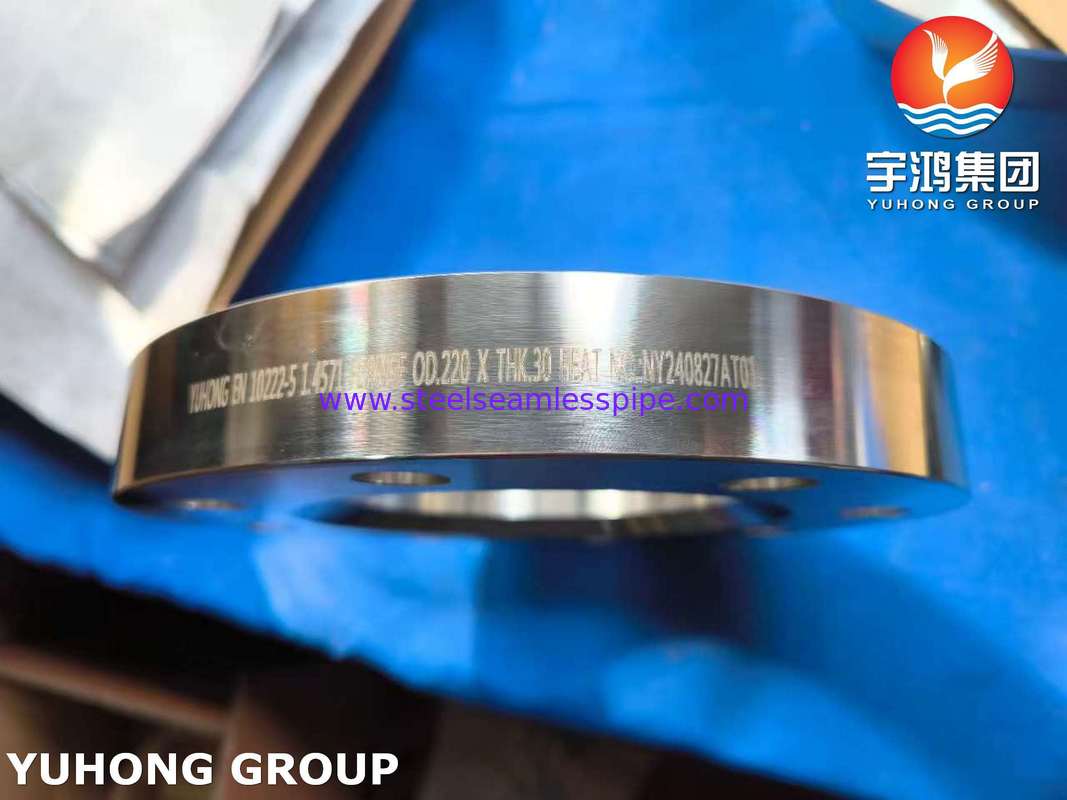

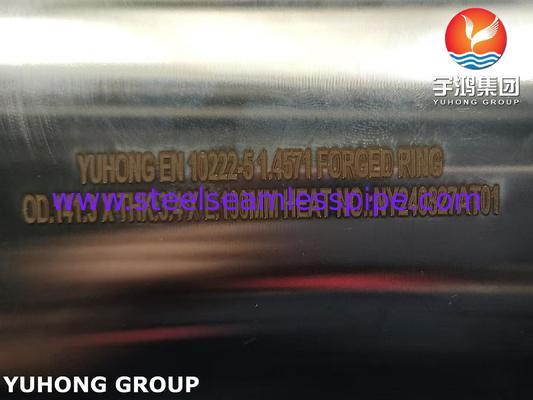

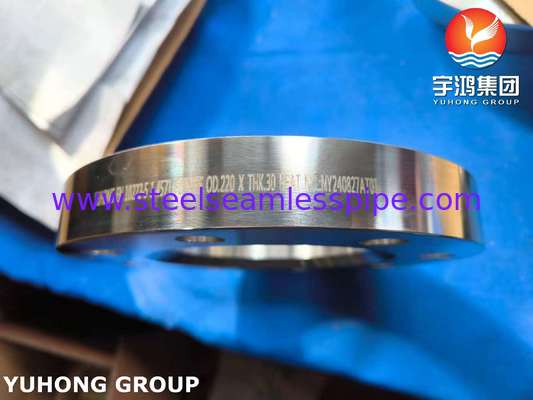

EN 10222-5 1.4571 Forged Ring & Flange Stainless Steel 316 for Chemical Plant and Marine Piping Systems

جزئیات محصول:

محل منبع:	چین
نام تجاری:	YUHONG
گواهی:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
شماره مدل:	EN 10222-5 1.4571

پرداخت:

مقدار حداقل تعداد سفارش:	500 کیلوگرم
قیمت:	قابل مذاکره
جزئیات بسته بندی:	تخته سه لا /مورد آهن
زمان تحویل:	15-30 روز
شرایط پرداخت:	L/C، T/T
قابلیت ارائه:	1500 تن در ماه

مخاطب

همه محصولات

لوله بدون درز از جنس استنلس استیل (290)

لوله بدون درز از جنس استنلس استیل (277)

لوله فولادی ضد زنگ دوبلکس (127)

لوله فولادی ضد زنگ دوبلکس (29)

لوله سوزن (107)

لوله باله (631)

مبدل حرارتی (17)

لوله مبدل حرارتی (424)

بسته لوله مبادله گرما (37)

صفحه لوله مبدل حرارتی (116)

بافل مبادله گرما (36)

کولر (8)

مخازن تحت فشار (4)

لوله جوش داده شده از جنس استنلس استیل (57)

لوله جوش داده شده از جنس استنلس استیل (114)

آلیاژ نیکل لوله (261)

لوله آلیاژ نیکل (79)

لوله آلیاژ مس (227)

لوله فولادی آلیاژی (184)

لوله تیتانیومی (10)

لوله آنیل روشن (153)

لوله دیگ بخار (145)

اتصالات فولادی (804)

فلنج فولادی (590)

دیگران (391)

قطعات پوشش (7)

توضیحات محصول جزئیات

استاندارد:	EN 10222-5	درجه ماده:	1.4571 (UNS S31635, 316Ti)
نوع محصول:	حلقه و فلنج فورج	برنامه:	سیستم های لوله کشی کارخانه های شیمیایی و دریایی
دامنه اندازه:	DN50-DN1200	امتیاز فشار:	PN10-PN100
برجسته کردن:	EN 10222-5 1.4571 stainless steel flange,316 stainless steel forged ring,marine piping system steel flange , 316 stainless steel forged ring , marine piping system steel flange

EN 10222-5 1.4571 Forged Ring & Flange Stainless Steel 316 for Chemical Plant and Marine Piping Systems

YUHONG GROUP is a specialized manufacturer of high-performance stainless steel forged componentswith over 35 years of expertise in serving global industrial markets. Our EN 10222-5 1.4571 Forged Ring & Flange products are engineered to meet the most demanding applications in chemical processing and marine environments, combining German engineering standards with exceptional corrosion resistance.

Heat Treatment Specifications for Steel Grade 1.4571

Attribute Name	Attribute Value
Standard	EN 10222-5
Material Grade	1.4571 (UNS S31635, 316Ti)
Product Type	Forged Ring & Flange
Application	Chemical Plant & Marine Piping Systems
Size Range	DN50-DN1200
Pressure Rating	PN10-PN100
Temperature Range	-20°C to 400°C
Certification	PED 2014/68/EU
Surface Finish	Solution Annealed & Pickled
NDT Requirements	PT/MT Optional

Chemical Composition of Steel Grade 1.4571 (X6CrNiMoTi17-12-2)

Element	Requirement (%)	Notes
Carbon (C), max	0.08
Silicon (Si), max	1
Manganese (Mn), max	2
Phosphorus (P), max	0.045
Sulfur (S), max	0.015	Note: "b" likely denotes a special condition
Chromium (Cr)	16.5 - 18.5
Molybdenum (Mo)	2.00 - 2.50
Nickel (Ni)	10.5 - 13.5
Nitrogen (N)	-	Not specified
Other Elements	Ti: 5 × C% min to 0.70 max	Titanium stabilization

Mechanical Properties of Steel Grade 1.4571 (X6CrNiMoTi17-12-2)

Property	Specification / Requirement	Notes / Conditions
Steel Number	1.4571	Corresponds to UNS S31635 (316Ti)
Steel Name	X6CrNiMoTi17-12-2	Titanium-stabilized austenitic stainless steel
Heat Treatment	+AT	Solution Annealed
Max. Thickness of Ruling Section	450 mm
0.2% Proof Strength, min	210 MPa	Yield Strength
1.0% Proof Strength, min	245 MPa
Tensile Strength	510 - 710 MPa
Elongation after Fracture, min	35%
Impact Energy, min	100 J +20°C	Charpy V-notch
Impact Energy, min	60 J -196°C	Charpy V-notch
Resistance to Intergranular Corrosion	Yes, in delivery condition	Per footnote b
Resistance to Intergranular Corrosion	Yes, in sensitized condition	Per footnote b

Advantages of EN 10222-5 1.4571 (316Ti) Forged Ring & Flange

Superior Strength & Durability: The forging process creates a dense, uniform grain structure, making these flanges significantly stronger and more durable than cast alternatives. They are ideal for high-pressure and high-stress applications

Excellent Corrosion Resistance: Made from 1.4571 (316Ti) stainless steel, these flanges offer excellent resistance to corrosion, particularly in challenging environments containing chemicals or chlorides

Reliable Performance in High-Temperature Service: The flanges maintain their mechanical properties and structural integrity at elevated temperatures, making them suitable for power generation and petrochemical applications

Precise Dimensions for a Secure Fit: The manufacturing process ensures tight dimensional tolerances, which facilitates easier installation and helps achieve leak-proof connections in piping systems

Long-Term Cost-Effectiveness: While the initial cost may be higher, their extended service life, reduced need for maintenance, and high reliability make them a cost-effective choice over time

Summary of Typical Applications
