ASTM A335 Gr P5 Alloy Steel Studded Finned Tube for Refinery Heating Furnace

ASTM A335 Gr P5 Alloy Steel Studded Finned Tube for Refinery Heating Furnace

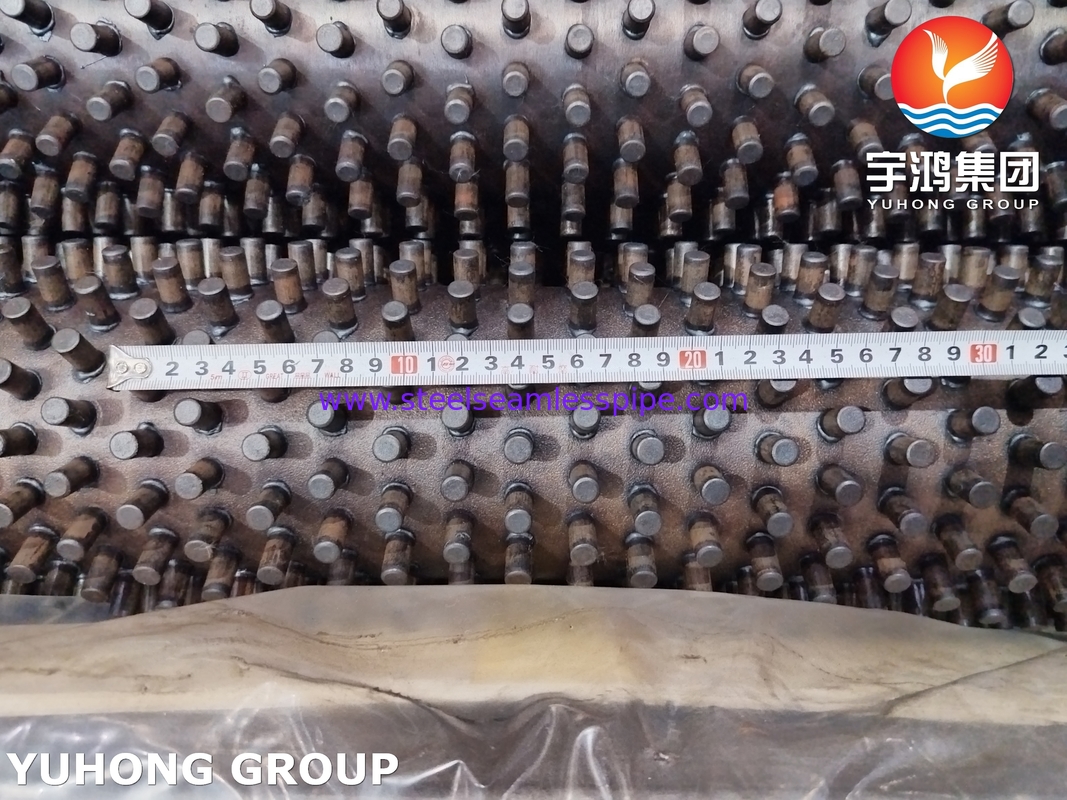

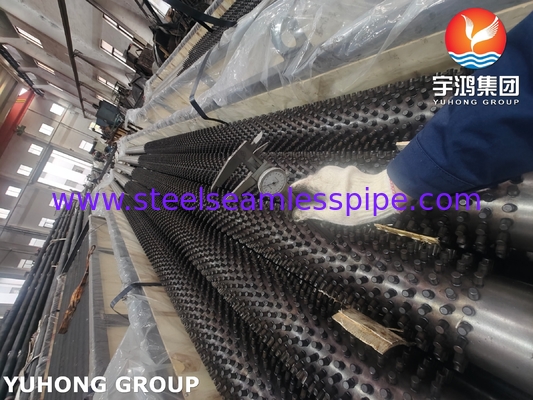

Studded Tubes / Pinned Tubes do not use continuous fins. Instead, a large number of needle-shaped (cylindrical) or head-shaped (similar to a nail cap) metal nails are welded onto the outer surface of the base tube through resistance welding and other methods.The core advantage of the studded tubes lies in its ability to provide reliable and efficient heat transfer even under extremely harsh conditions, especially in environments with high-intensity radiant heat, as well as severe scaling and wear.

Base tube material P5 is a grade of standard ASTM A335, A335 covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service.

Chemical Composition (%)--max

Mechanical Properties

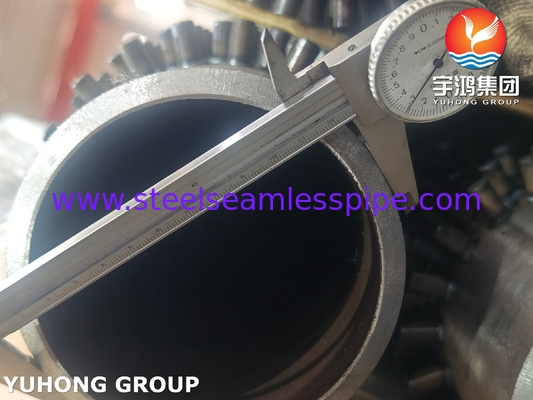

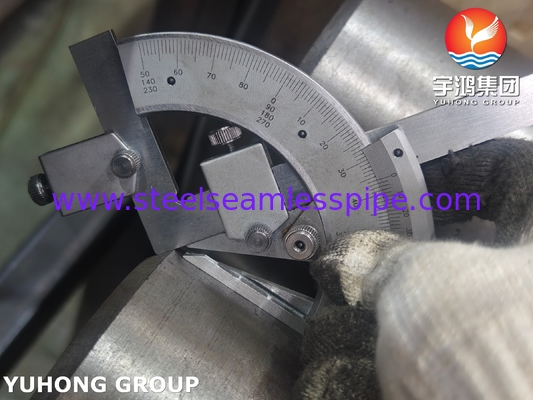

Base Tube Inspections and Tests

Main Application Fields

Core Application: The radiant section of heating furnaces in the oil refining and chemical industries is where the studded tubes are most commonly and importantly used.

Application scenario: In the radiant sections of distillation furnaces, coking furnaces, reforming furnaces in oil refineries, as well as ethylene cracking furnaces in the chemical industry.

In cases where there is severe wear and corrosion of the heat exchanger
Application scenarios: Immersed heat exchange tubes in fluidized bed reactors, flue gas waste heat recovery systems, etc.

A special chemical reactor that needs to enhance heat transfer
Application scenario: Certain types of fixed-bed reactors, or as components within the reactor.

Specifications For Various Types Of Finned Tubes
