ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry

ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry

  • ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry
  • ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry
  • ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry
ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry
جزئیات محصول:
محل منبع: چین
نام تجاری: YUHONG Group
گواهی: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
شماره مدل: SA249
پرداخت:
مقدار حداقل تعداد سفارش: 500 کیلوگرم
قیمت: قابل مذاکره
جزئیات بسته بندی: مورد چوبی / قاب آهن
زمان تحویل: به کمیت بستگی دارد
شرایط پرداخت: T/T ، L/C
قابلیت ارائه: با توجه به نیاز مشتری
مخاطب
توضیحات محصول جزئیات
OEM: با توجه به نقشه ها یا نمونه ها مواد لوله پایه: فولاد کربن ، استیل ضد زنگ ، فولاد آلیاژ
ماده باله: فولاد کربن ، استیل ضد زنگ ، فولاد آلیاژ قطر لوله برهنه: 16mm-219mm
زمین باله: 3 میلی متر 25 میلی متر ارتفاع باله: 5mm-30mm
باله ضخیم: 0.8mm-3mm استفاده: مبدلهای حرارتی
برجسته کردن:

ASME SA249 TP304 finned tube,HF H/HH welding fin tube,petrochemical finned tube

,

HF H/HH welding fin tube

,

petrochemical finned tube

ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry





The ASME SA249 TP304 HF H/HH Welding Finned Tube is a high-performance heat transfer component widely used in industries such as power generation, chemical processing, and petrochemicals. This product is manufactured using high-frequency resistance welding to attach fins to a base tube, significantly improving its heat transfer efficiency.





Key Features

  1. Material Standard:

    • The base tube conforms to ASME SA249 TP304, a specification for welded austenitic stainless steel tubes designed for high-temperature and corrosive environments.
    • TP304 is known for its excellent corrosion resistance, mechanical strength, and durability.
  2. High-Frequency (HF) Welding:

    • The fins are welded to the tube using high-frequency resistance welding, ensuring a strong bond and superior thermal conductivity.
    • This method minimizes thermal resistance and ensures the finned tube's long-term reliability.
  3. Fin Types:

    • Available in H-type or HH-type fin configurations.
    • H/HH fins are specially designed for enhanced heat dissipation and durability under extreme conditions.
  4. Heat Transfer Efficiency:

    • The fins increase the surface area of the tube, significantly boosting its heat transfer performance.
    • Suitable for applications requiring efficient heat exchange between fluids or gases.
  5. Corrosion Resistance:

    • Made from stainless steel TP304, the finned tube exhibits excellent resistance to corrosion, oxidation, and scaling, even in harsh environments.





Applications

The ASME SA249 TP304 HF H/HH Welding Finned Tube is widely used in the following industries:

  • Thermal Power Plants: Heat recovery systems, economizers, and air preheaters.
  • Petrochemical Industry: Heat exchangers for oil refining and chemical processing.
  • HVAC Systems: Heating, ventilation, and air conditioning equipment.
  • Marine Applications: Heat exchangers for desalination and ship systems.
  • Boilers: Water wall panels and superheaters.





Advantages

  • Durability: High mechanical strength and resistance to thermal fatigue.
  • Corrosion Resistance: Excellent performance in corrosive and high-temperature environments.
  • Cost-Effectiveness: Efficient heat transfer reduces energy consumption and operational costs.
  • Customizable Design: Available in various sizes, fin configurations (H/HH), and tube lengths to meet specific application requirements.





Technical Specifications

  • Tube Material: ASME SA249 TP304 Stainless Steel.
  • Fin Material: Typically stainless steel or carbon steel, depending on application.
  • Welding Process: High-Frequency Resistance Welding (HF).
  • Fin Type: H-type or HH-type for enhanced heat dissipation.
  • Dimensions: Customizable tube and fin sizes to meet project needs.





Why Choose ASME SA249 TP304 HF H/HH Finned Tubes?

  • Compliance with ASME standards ensures safety, reliability, and quality.
  • The use of TP304 stainless steel provides an excellent balance of performance, durability, and corrosion resistance.
  • Advanced HF welding technology guarantees a secure fin-to-tube bond, ensuring long service life and optimal performance.

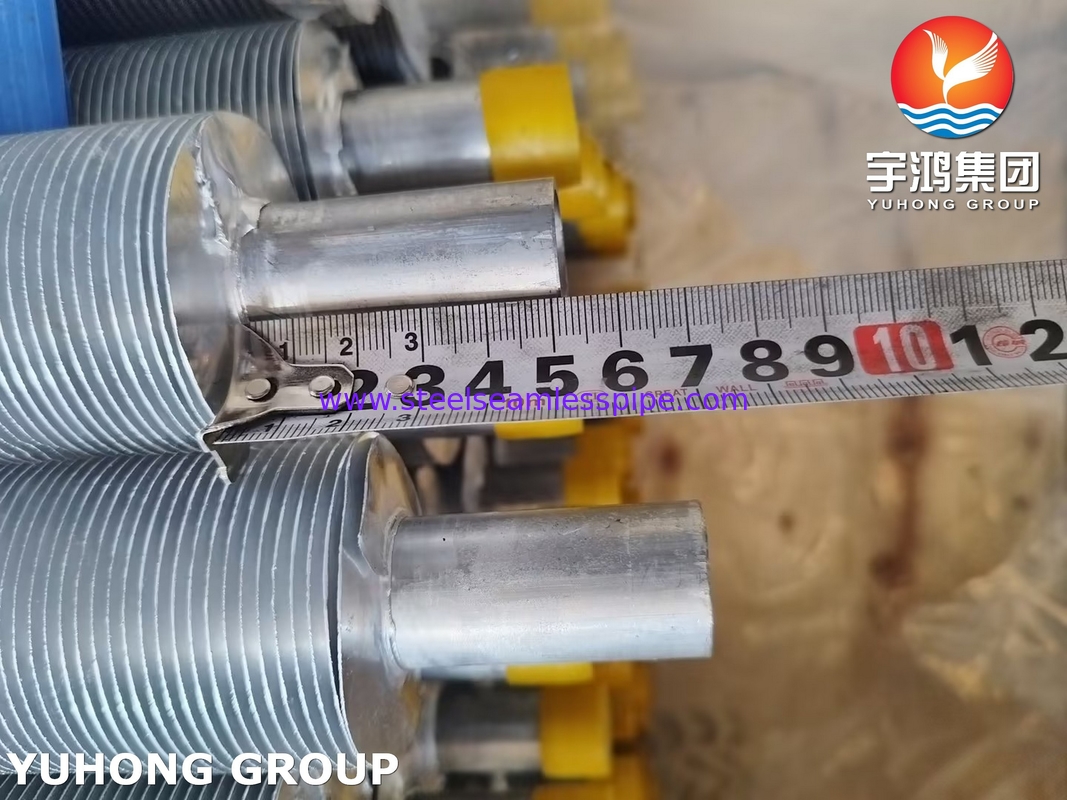

ASME SA249 TP304 HF H/HH Welding Finned Tube For Petrochemical Industry 0
